AUTOMATIC BLISTER PACKING MACHINE
BRIEF DESCRIPTION
1.0 GENERAL WORKING PRINCIPLE.

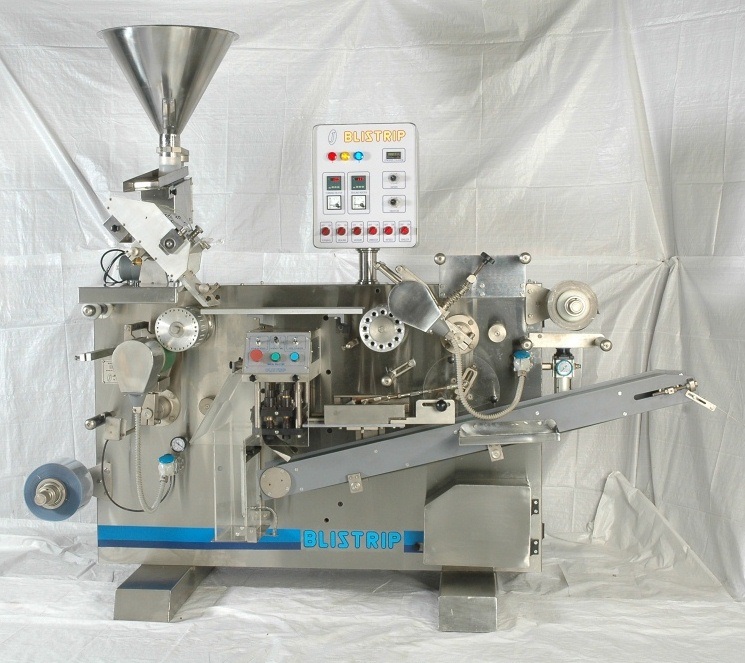

BLISTRIP–Ixt is automatic blister packing machines mainly utilized for packing of smaller and regular shaped solid articles such as pharmaceutical tablets, capsules, draggers etc., in blister packs. The Blister Forming, Product Feeding and Sealing operations are continuous by rotary motion while the indexing and punching operations are of intermittent reciprocating motion.
The output capacity of the machine depends on the product characteristics and thus on the type of feeding device. In case of slightly curved or flat tablets upto 10mm dia an output of 150 packs per minute for BLISTRIP – Ixt can be optimally achieved.
The packing materials namely PVC film and the lidding material namely Aluminum foil (or Glassine Paper foil) with heat sealable VMCH lacquer are required for blister packing and are drawn off from reel stock. The blister packs, which are punched out from main web, can either be collected in bins or transferred over a conveyor belt for further handling. The trim waste is sheared off in small pieces to allow easy disposal.
2.0 Standard Accessories And Mountings.
2.0.1 AC Inverter Variable Speed Drive.
2.0.2 Built in control Panel.
2.0.3 Rotary Contact Heating System for PVC Film.
2.0.4 Foil and Film Reel Holders.
2.0.5 Thermoforming Station with Vacuum Pump.
2.0.6 Automatic Product Feeding System with Vibrator.
2.0.7 Pressure Sealing Roller Assembly with Checkered Engraved Pattern.
(For sealing of continuously printed Alu Foil)
2.0.8 Web Indexing Mechanism (ratchet type).
2.0.9 Pack Punching Station.
2.0.10 Chilled Water Circulation Pump.
2.0.11 One Set of STANDARD CHANGE - OVER PARTS - as listed in point 2.1 below.
(To suit any one product, in one configuration)
2.0.12 Embossing Type Founts (Size 1.6mm X 3.2mm) (Standard)
2.1 Set Of Standard Change-Over Parts.
2.1.1 Blister Forming Roller.
2.1.2 Counter Sealing Roller.
2.1.3 Inclined Feed Channel.
2.1.4 Guide Track.
2.1.5 Cutting Punch (with B. No. Embossing Facility).
2.1.6 Synchronizing Gears.
3.0 Special Accessories And Mountings (OPTIONS).
3.0.1 Flexographic Over Printing Unit.
3.0.2 Powder Suction Unit (De-Dusting Unit)
3.0.3 Vertical Feeding System
3.0.4 Water Chiller Unit (Built-in within the machine Frame)
3.0.5 Water Chiller Unit (External)
3.0.6 Photo Optical Print Image Control (Print Registration System Controller).
3.0.7 Non – Fill – Detection and Empty Pack Rejection System Controller.
3.1 Special Change - Over Parts.
3.1.1 Pressure Sealing Roller Assembly. (For Print Registered Sealing).
3.1.2 Ribbed Feed Bowl
3.1.3 Vertical Feed Channel
Specifications and standard supplies are subject to changes
