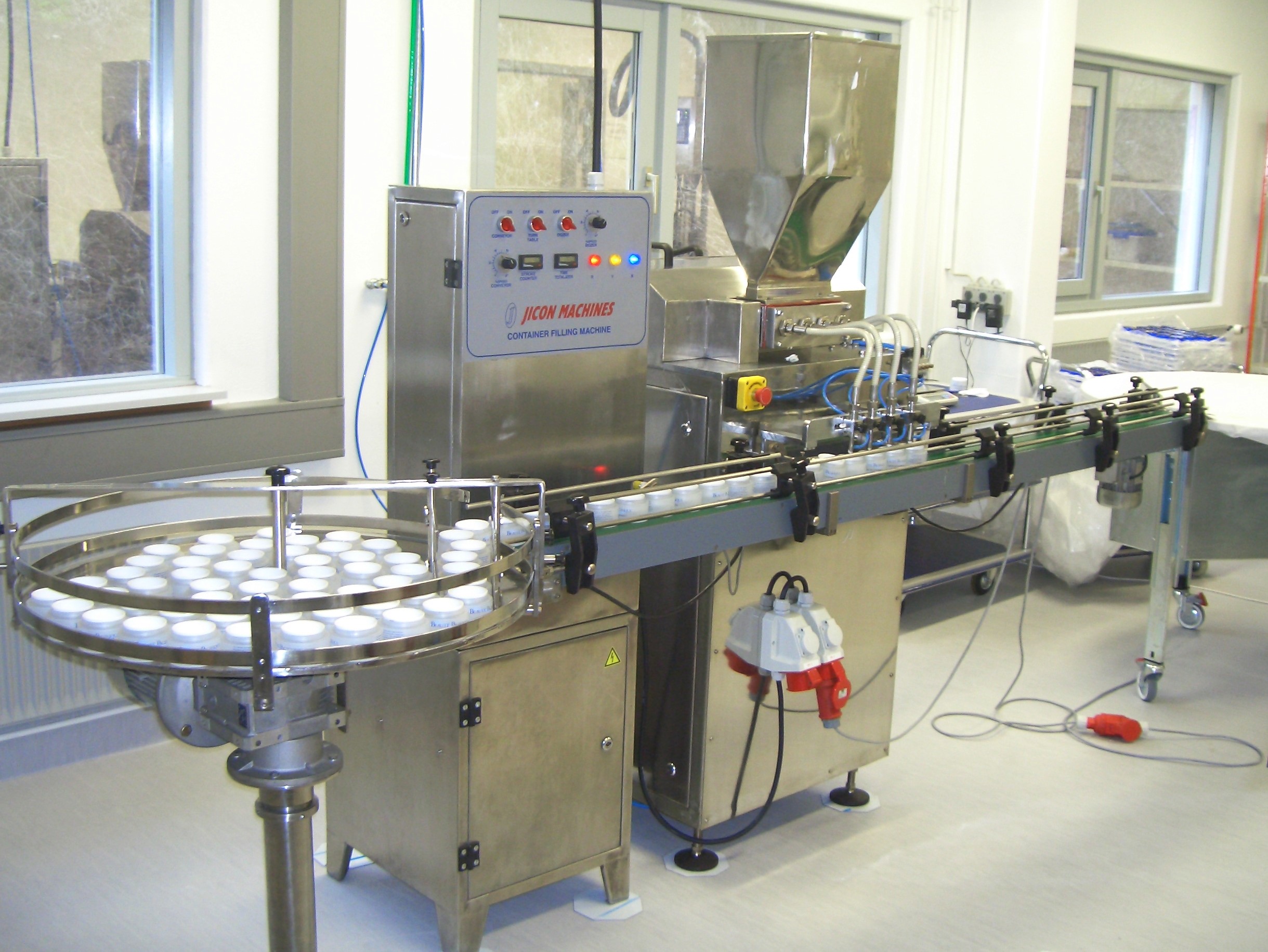

AUTOMATIC CONTAINER FILLING MACHINE
High speed automatic multi head container filling machine for filling cream, paste, ointment, wax polish, grease, jam, sauce etc. in plastic or tin containers or jars, bottles etc.
Containers like flat tins or bottles are loaded on turntable from where they are transferred onto a conveyor belt. They are then indexed into the filling station. No-Container-No-Fill device will stop dozing operation if containers are not in place. SS jacketed hopper with 2 kw heater and stirrer can be provided as an option to facilitate easy filling of highly viscous products. Filled containers are transported over conveyor for further operations and handling.
FEATURES:
• PLC Controlled machine with colour Touch Screen
• Can fill creams of various viscosity
• No –Container – No – Fill interlock
• Tail Cutting arrangement after dozing
• Easy change over from one size to another
• Fill quantity can be accurately adjusted
• Fill accuracy up to ±0.5%
• Simple in operation and maintenance
• Jacketed hopper with stirrer for high viscosity products can be provided as an option
MODEL DOZER Fill Range Out Put
CF-2 Double Head 5 to 500 ml 10 to 60 per min
CF-3 Triple Head 5 to 200 ml 40 to 90 per min
CF-4 Four Head 5 to 50 ml 80 to 120 per min
* Fill Range with interchangeable Filling Syringe of different capacity
# Output depends on fill quantity and material characteristics.
