De Blistering Machine:

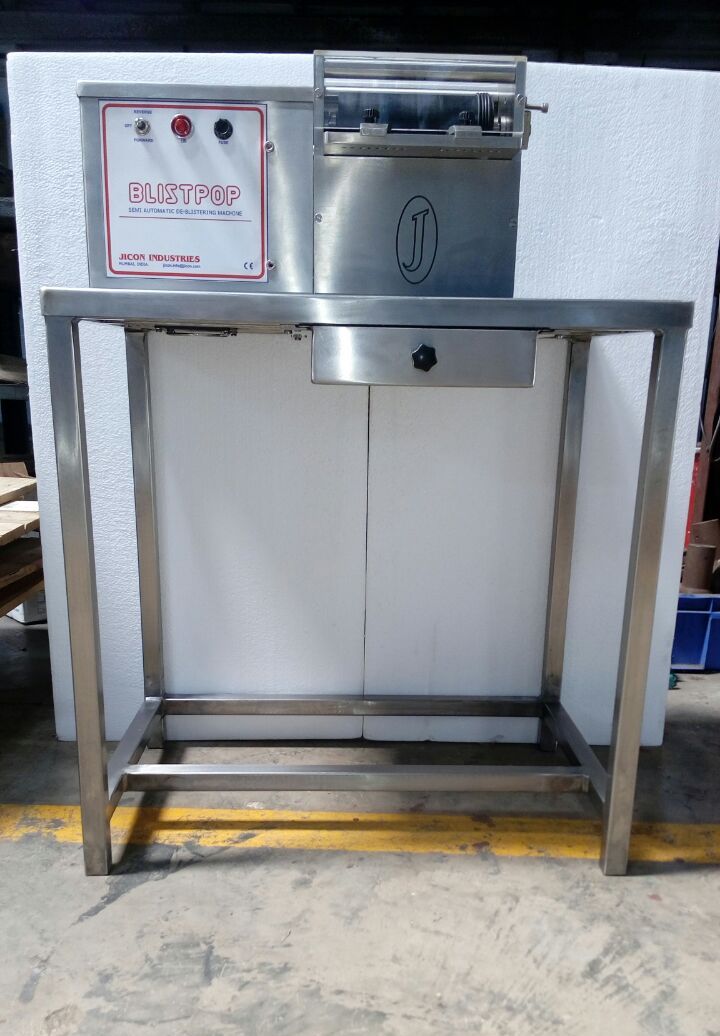

BLISTPOP” is a simple machine to recover tablets / capsules / dragees from damaged or incomplete blister packs. A damaged or incomplete pack is inserted between two guides and pushed manually inside.
The machine is universal type and does not need any change- over parts. By proper adjustments of wheels, guides and pressure of rubber roller a high rate of recovery can be achieved.
Adjustable wheels grips and draws the pack under a rubberized roller. The rubber roller presses down on the blister cavities-pushing out the product. The machine is adjustable to suit most pack sizes. The machine is suitable to open aluminum foil as well as glassine foil. Opened product is collected in a box and packaging material is collected at the back.
Specification:
Material of Construction: As per the GMP standard with Stainless Steel contact parts
Pressure Roller: Rubber type pinch roller for pressing blister
Power: Driven by 25 Watt Geared Motor
Power Supply : 230V, 50 Hz, Single phase
Output : Up to 30 Blisters per min (Depending on pack size, operator’s efficiency)
Flexibility: Adjustable ring according to pack size, Separate chute for product and waste.
Safety : Guards shall be provided for de-blistering area
Mobility : Assembly shall be mounted on castor wheels for mobility
Specification of Blister to be De-blister: It can be PVC-Alu, PVDC-ALU, ALU-ALU Blisters
Documentation: Manual comprising of Functional description, GA Drawing, Safety instructions guidelines shall be provided.
For JICON TECHNOLOGIES.
