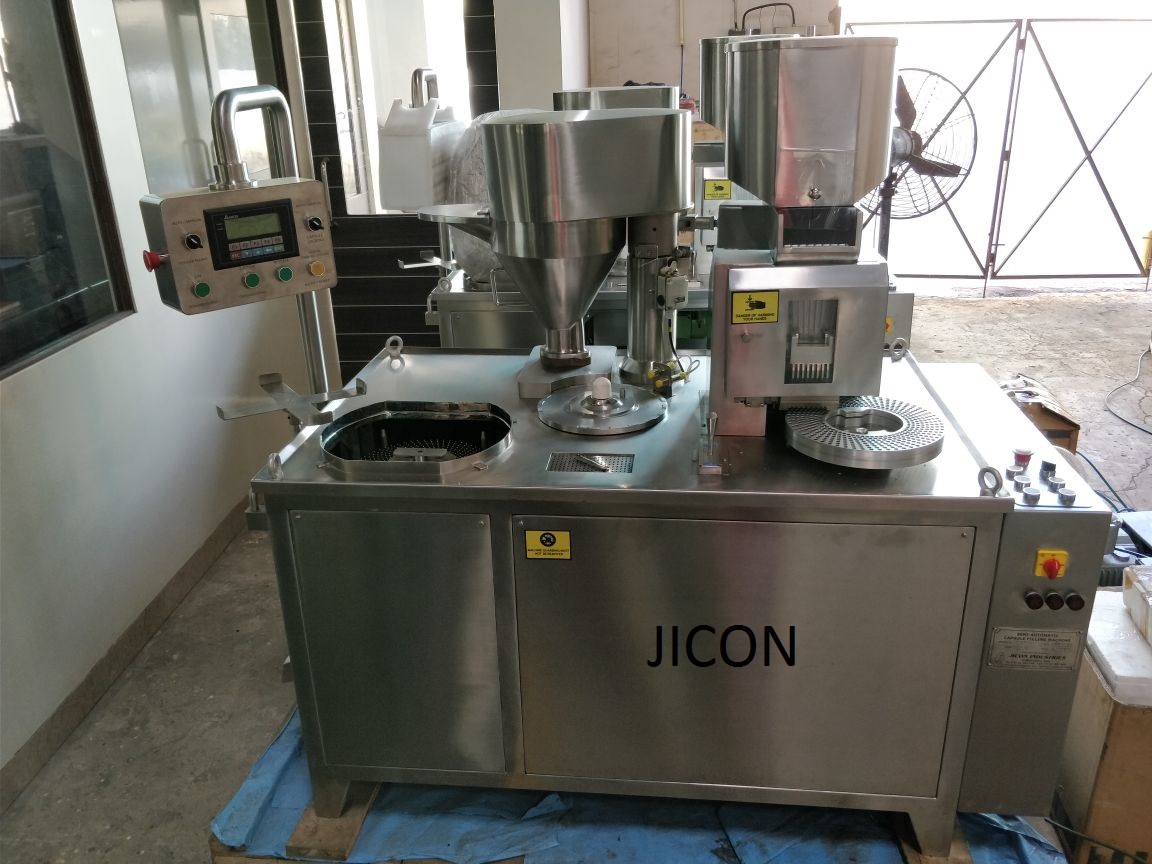

Semi-automatic Capsule Filling Machine (Double Loader)
The Double Loader High Speed Semi-Automatic Capsule Filling m/c is suitable for production of medium to large batches of pharmaceutical hard gelatin capsules of all sizes.
• It can fill capsules of all sizes with powder, granules or pellets.
• The machine is made as per GMP requirements
• Machine output: 30, 000 – 45, 000 capsules per hour, depending on capsule sizes
• PLC controlled machine with touch screen HMI operations
Features:
• Loader gets disengaged automatically after one complete rotation of loading ring
• Auger with four speeds to fill different type of powders & pellets
• Filling Table with VFD for infinitely variable speed adjustment for accurate dosing
• Modified design of drug hopper reduces time for dismantling and unloading of powder
• Multi colour touch screen
Technical Specifications:
MOC of Loading Ring LM4 Aluminium alloy
Number of holes/Ring Size 00: 480
Size 0: 600
Size 1, 2, 3, 4: 720
Output 30, 000 - 45, 000 capsules / hour
Loader Drive 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz
Auger Drive 1.5 HP, 380/440 Volts, 3Ph, 50 Hz
Filling Table Drive 0.5 HP, 380/440 Volts, 3 Ph, 50 Hz
Vacuum Pump 3HP vacuum pumps – 2 nos., one per loader
Compressed Air 300 Ltrs./min. at 100 PSI.
