Top Blister Packing Machines,Capsule Filling Machines,Container Filling Machines Products in Mumbai at best prices

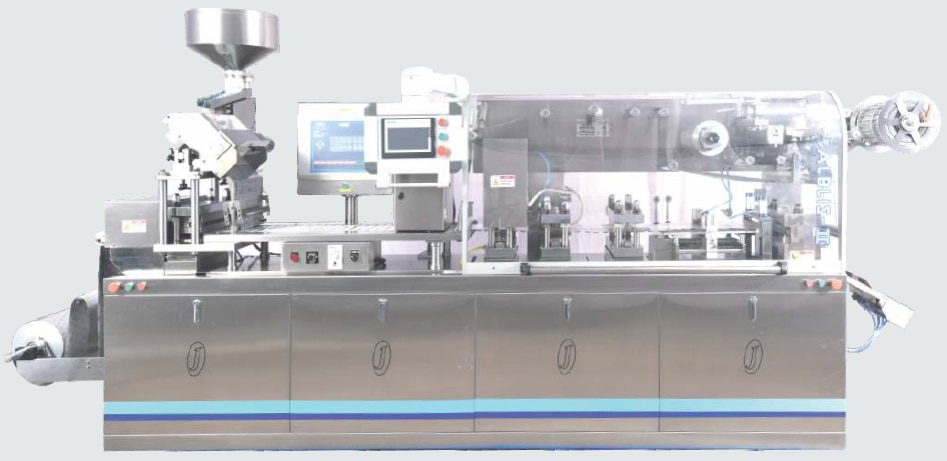

ALBLIS-II: Automatic Flat Plate Blister Packing Machine

Automatic Flat Plate Blister Packing Machine (Ideal for Commercial High Output batches): ALBLIS is a versatile ‘Flat Plate’ intermittent motion automatic blister packing machine that can produce Alu-Alu blister packs by cold forming method as well as PVC-Alu blister packs by thermoforming method. This machine is utilized for packing of smaller and regular shaped solid articles such as pharmaceutical Tablets, Capsules, Dragees etc. in Alu-Alu or PVC-Alu blister packs. This Machine can also be used for packing of Ampoules, Vials, Tubes in PVC-Alu blister packs. The Blister Forming, Sealing, Indexing and Punching operations are of intermittent reciprocating motion. Various types and styles of product feeding devices are offered to suit different applications. The standard configuration of the machine is for producing Alu-Alu blister suitable for Pharmaceutical Tablets, Capsules, Dragees etc. The standard configuration may be opted out or can be combined with other configurations. Some of the Important Features include: # Quick Change Over # Cost Efficient # Suitable for Alu-Alu, PVC-Alu and PVC-Paper Blister Packs # Can pack Tablets, Capsules, Dragees and also vials, Ampules, Tubes, Creams etc # Simple Operation # Cost Efficient # Easy Maintainence Technical Specifications: # BASE MATERIAL: MAX WIDTH: 260mm (COLD FORM LAMINATED ALU FOIL / PVC / PVC-PVDC, 0.2 TO .3 THICK; IN REEL FORM MAX. dia. 250mm) # LIDDING MATERIAL: MAX. WIDTH: 260mm (HSL COATED HARD ALU / GLASSINE FOIL, 0.02 TO 0.04 THICK; IN REEL FORM MAX. dia. 220mm) # MAX. PACK SIZE: 250mm x 140mm # MAX. FORMING DEPTH: 14mm # MAX. OUTPUT* ie PACKS / MIN: 70 (Alu-Alu, 2 Tracks), 200 (Alu-PVC, 4 Tracks) # MAX. STROKES / MIN: 35 (Alu-Alu), 50 (Alu-PVC)

Capsule Filling Machines

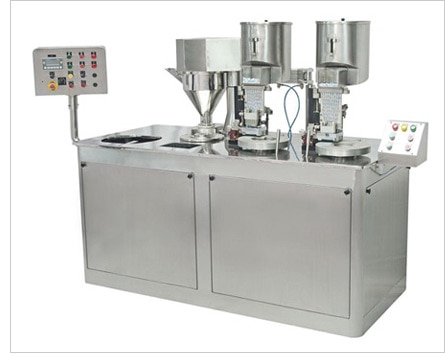

Automatic Capsule Filling Machines ENSULE

Our ENSULE series of machines are Fully Automatic Capsule Filling machines used to fill powders (in the form of slugs, pellets or mini tablets) in hard gelatin capsules. These are high speed, high performance machines that incorporate the latest international design and are built with precision using most appropriate materials and up-to-date manufacturing systems. Different models are available for various output requirements. Being extremely durable and reliable, these machines are also capable of filling multiple dosage combinations such as powder + pellets + tablet etc to the highest accuracy and are capable of filling all sizes from #00 to #5 of capsules. These are easy to clean and meets GMP standards. Features: # High Speed Production # PLC & Touch Screen controlled machine # Product handled: powder as standard. Pellet and tablet feeding devices optional # Compact, sturdy and meets cGMP standards # Suitability for capsule size: 00, 0, 1, 2, 3 and 4 - with size changeover # Dozing System: Tamping (slug formation through progressive compression) # Quick & easy fill weight adjustment # Tamping System for powders ensures accurate fill weight - accuracy of ± 2% # Powder sensor maintains constant level of powder in the dosing chamber # Audio alert on capsules running low in hopper # Line Machines like Empty Capsule Sorter and Elevator, Powder Charging Systems, Filled Capsule Polisher and Empty Capsule Rejection, Metal Detector, Damaged Capsule Rejection etc. are available as per customer requirements. Technical Specifications: ENSULE–400 # Rated Output (powder) 24,000 per hour # Rated Output (pellets) 15,000 per hour # Electrical Connection 415 V, 3 Ph AC + N + Earth (other voltage on request) # Power Consumption (incl drive, vacuum pump & ADU) 6.5 kw ENSULE–750 # Rated Output (powder) 45,000 per hour # Rated Output (pellets) 35,000 per hour # Electrical Connection 415 V, 3 Ph AC + N + Earth (other voltage on request) # Power Consumption (incl drive, vacuum pump & ADU) 6.5 kw ENSULE–1500 # Rated Output (powder) 90,000 per hour # Rated Output (pellets) 70,000 per hour # Electrical Connection 415 V, 3 Ph AC + N + Earth (other voltage on request) # Power Consumption (incl drive, vacuum pump & ADU) 8 kw ENSULE–2000 # Rated Output (powder) 120,000 per hour # Rated Output (pellets) 95,000 per hour # Electrical Connection 415 V, 3 Ph AC + N + Earth (other voltage on request) # Power Consumption (incl drive, vacuum pump & ADU) 8 kw Position wise functional sequence: Station 1: Empty Capsule loading and separation (x2 in case of ENSULE-2000 or ENSULE-1500), Pellet or Tablet Filling (optional) Station 2: Empty Capsule loading and separation Station 3: Tamping style Powder Filling (standard) Station 4: Pellet or Tablet Filling (optional) Station 5: Ejection of un-separated capsule Station 6: Idle Station 7: Capsule locking Station 8: Discharge of filled capsules Station 9: Segment cleaning ************************************************************************ Youtube Link: https://youtu.be/dSaaT4wrXuc

Capsule Filling Machines

Automatic Capsule Filling Machines ENSULE

Blister Packing Machines

ALBLIS-I: Automatic Flat Plate Blister Packing Machine

Flat Plate Blister Packing Machine Ideal for R&D, pilot plants and small batch production: ALBLIS is a versatile ‘Flat Plate’ intermittent motion automatic blister packing machine that can produce Alu-Alu blister packs by cold forming method as well as PVC-Alu blister packs by thermoforming method. This machine is utilized for packing of smaller and regular shaped solid articles such as pharmaceutical Tablets, Capsules, Dragees etc. in Alu-Alu or PVC-Alu blister packs. This Machine can also be used for packing of Ampoules, Vials, Tubes in PVC-Alu blister packs. The Blister Forming, Sealing, Indexing and Punching operations are of intermittent reciprocating motion. Various types and styles of product feeding devices are offered to suit different applications. Some of the Important Features include: # Simple Operation # Ideal for small batch production # Quick Change Over # Cost Efficient # Easy Maintenance # Suitable for Alu-Alu, PVC-Alu and PVC-Paper Blister Packs # Can pack Tablets, Capsules, Dragees and also vials, Ampules, Tubes, Creams etc # Can be supplied without automatic product feeding system to make it suitable for R&D and Formulation Development applications Technical Specifications: # BASE MATERIAL: MAX WIDTH: 140mm (COLD FORM LAMINATED ALU FOIL / PVC / PVC-PVDC, 0.2 TO .3 THICK; IN REEL FORM MAX. dia. 250mm) # LIDDING MATERIAL: MAX. WIDTH: 40mm (HSL COATED HARD ALU / GLASSINE FOIL, 0.02 TO 0.04 THICK; IN REEL FORM MAX. dia. 220mm) # MAX. PACK SIZE: 110mm x 130mm (1 UP), 110mm x 62mm (2 UP) # MIN. PACK SIZE: 40mm x 45mm # MAX. FORMING DEPTH: 10mm (EXTENDABLE TO 20mm) # MAX. OUTPUT* ie PACKS / MIN: 30 (1 UP) and 60 (2 UP) # MAX. STROKES / MIN: 30

Blister Packing Machines

BLISTRIP-Ixt: Automatic Blister Packing Machine (Rotary Forming & Rotary Sealing)

BLISTRIP–I xt is a single track automatic blister packing machine for packing of tablets, capsules, dragees etc., in blister packs using PVC-Alu packaging materials. The Blister Forming, Product Feeding and Sealing operations are continuous by rotary motion while the indexing and punching operations are of intermittent reciprocating motion.The output capacity of the machine depends on the product characteristics. In case of slightly curved or flat tablets up to 10mm dia an output of 150 packs per minute can be optimally achieved. Features: # Combi packs possible for better utilization of capacity and packaging materials # Edge – to – edge cutting to eliminate trim waste between packs # Special tool design reduces trim waste # Continuous blister forming at low temperature by contact heating system # All change over parts and adjustments accessible from front side # Easy and quick change over reduces material wastage and down time # Simpler operation reduces operator fatigue – increases output # Very compact in size Specifications: # Max. Web Width 148 mm # Max. Forming depth 10 mm (Expandable up to 20) # Max. output: Packs/Min 150 (1 UP), 300 (2 UP) # Max. Strokes/Min 150 Efficiency: Our Competence and experience in package design ensures optimum utilization of machine capacity to give highest possible output as well as minimum possible packaging material consumption. Performance: Simplicity of design with careful placement of various stations giving operator full vision and total control of all principal functions of machine that enhances performance. Reliability: Solid structure and sturdy components together with easy to set up and maintain mechanism ensures maximum availability. Quick and easy change over from one format to another improves productivity.

Blister Packing Machines

ALBLIS-II: Automatic Flat Plate Blister Packing Machine

Process Equipments

Auto Coater

Auto coater is popularly used to coat tablets, pills, candies, granules, sweets with sugar film, an organic film, and aqueous coating in the Pharmaceutical and food industry. It is a high efficiency, energy-saving, safe and clean equipment for film & sugar coating of tablets, Pills, and candies with film – organic solvent and aqueous coating and film coating of tablets. The tablets to be coated are put into a continuous orbital motion the closed rotating Drum. The coating medium gets auto-sprayed during the process, while, the hot filtered air is supplied under negative pressure. The hot air penetrates through the core layers of the table and is discharged from the bottom of the layers. The coating medium sprayed on the surface of the tablet core will dry rapidly and evenly, forming a stable and smooth surface film on the tablet. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/ointment-manufacturing-plant-manufacturer-india.php

Process Equipments

Auto Coater

Process Equipments

Ointment Cream and Toothpaste Manufacturing Plant

Automatic Ointment / Cream Manufacturing Plant is used to prepare medicated homogenised emulsion of Wax and Water to a particular formulation. It is useful for manufacturing of creams, ointments, pastes and gels for pharmaceutical and cosmetic industries. It consists of 3 vessels: a) Jacketed Water Phase Vessel of adequate capacity according to batch size of the product to heat the water to a specified temperature according to formulation. b) Jacketed Wax Phase Vessel to melt wax of required formulated quantity to specified temperature. c) Molten wax and hot water then transferred by Vacuum to Jacketed Main (Reactor) Vessel through filter and the pipe lines laid in the plant, Medicinal ingredients according to formula of the formulation added, then processed at constant temperature under 400 mm Vacuum with continuous stirring, homogenized till it becomes an emulsion with consistent viscosity. Heating can be Electrical / Steam / Thermic Fluid. Plant Capacities ranging from 50kg to 1000kg can be manufactured. All contact parts are made of superior quality SS 316 / SS 316 L grade stainless steel material, other non-contact parts are made out of SS 304 material. Jackets are made out of M.S., cladded with SS 304. This meets GMP standards. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/ointment-manufacturing-plant-manufacturer-india.php

Process Equipments

Fluid Bed Dryer

FBD (FLUID BED DRYER) Salient Features: # Better productivity and lesser drying time. # Less handing, more hygienic. # Uniform drying at low temperature. # Pneumatic sealing for higher capacity models. # Static grounders to eliminate electro-static charge # Product container with tilting arrangement. # Flame proof models also available. # Models available from 2 Kg. To 300 Kg Description: A Fluid Bed Dryer with latest improvement in design make this unit a truly versatile one for pharmaceutical, food, dyestuff, chemical and polymer industries. All contact parts are made out of S.S.304/316 and are provided with isolated control panel. Operation: Due to induced draft created by specially designed heavy duty fan the atmospheric air is drawn through the 5 micron air filter. The filtered air is then to the required temperature by electric heaters / steam radiator. The hot air passes through the product container and the product gets dried by Air fluidisation and the air control circulation by damper. The filter bag prevents fine particles from carrying over to exhaust air steam. Selection: Selection of capacity of fluid bed dryer depends upon bulk density, drying temperature and moisture contents of wet material to be dried. In case of 120 kg model a batch of 145 kg wet material can be loaded provided the bulk density of the material is 0.6kg/lit. (approx) Optional: # Digital temperature controller cum indicator for steam operated dryer. # Pneumatic bag shaking device. # Intrinsically safe earthing system. # Bottom & rear chambers made our of S.S.-304 quality # Flame proof Motor with push button station. # Available in GMP / S.S. Models About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/fluid-bed-dryer-manufacturer-india.php

Accessories and Ancillary Equipments

Capsule Polishing And Sorting Machines

Capsule polishing cum Sorting Machine is used in connection with the ENSULE or SACF series of Capsule Filling machines. The components used in capsule polishing machine are made of high grade steel. Main chamber of the system is made of quality approved stainless steel covered with nylon net. The capsules are inserted into the polishing chamber of the unit through feed hopper. The feed capsules are rubbed inside the polished chamber of the machine to remove the dust deposits. Key Features: # Polishing chamber of the unit is attached with the dust collector to collect the dust particles of the feed capsules # Technical Specifications: Specific provision for compressed air to clean nylon brush # Easy to dismantle or clean or segregate # Low space utilization Technical Specifications: # Model: CPM - 100 # Capacity: 120,000 capsules per hour # Motor Rating: 0.18 KW # Weight: 50 kg (approx) # Dimensions: 1000 x 700 x 95 About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/capsule-polishing-and-sorting-machine.php

Container Filling Machines

Semi Automatic Container Filling Machine

A simple and sturdy semi-automatic container filling machine for filling cream, paste, ointment, wax polish, grease, jam, sauce etc. in plastic or tin containers or jars, bottles etc. Containers like flat tins, bottles are to be manually placed under the filling nozzles. No-Container-No-Fill device will stop the machine if container is not in place. SS jacketed hopper with 2 kw heater and stirrer can be provided as an option to facilitate easy filling of highly viscous products. Filled containers are to be manually removed from machine and replaced with next empty container. Features : # Can fill creams of various viscosity # No – Container – No – Fill interlock # Tail Cutting arrangement after dozing # Easy change over from one size to another # Fill quantity can be accurately adjusted # Fill accuracy up to ±0.5% # Simple in operation and maintenance Compressed Air requirement: 2 CFM @ 6 bar Models Available: A. SACnF-1: # Dozer: Single Head # Filling Range: 5 to 500 ml # Output: 10 to 30 per min B. SACnF-2: # Dozer: Double Head # Filling Range: 5 to 500 ml # Output: 20 to 60 per min Note: # Fill Range with interchangeable Filling Syringe of different capacity # Output depends on fill quantity and material characteristics. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/semi-automatic-container-filling-machine-for-creams-and-ointment.php
