Flat Plate Blister Packing Machine Ideal for R&D, pilot plants and small batch production: ALBLIS is a versatile ‘Flat Plate’ intermittent motion automatic blister packing machine that can produce Alu-Alu blister packs by cold forming method as well as PVC-Alu blister packs by thermoforming method. This machine is utilized for packing of smaller and regular shaped solid articles such as pharmaceutical Tablets, Capsules, Dragees etc. in Alu-Alu or PVC-Alu blister packs. This Machine can also be used for packing of Ampoules, Vials, Tubes in PVC-Alu blister packs. The Blister Forming, Sealing, Indexing and Punching operations are of intermittent reciprocating motion. Various types and styles of product feeding devices are offered to suit different applications. Some of the Important Features include: # Simple Operation # Ideal for small batch production # Quick Change Over # Cost Efficient # Easy Maintenance # Suitable for Alu-Alu, PVC-Alu and PVC-Paper Blister Packs # Can pack Tablets, Capsules, Dragees and also vials, Ampules, Tubes, Creams etc # Can be supplied without automatic product feeding system to make it suitable for R&D and Formulation Development applications Technical Specifications: # BASE MATERIAL: MAX WIDTH: 140mm (COLD FORM LAMINATED ALU FOIL / PVC / PVC-PVDC, 0.2 TO .3 THICK; IN REEL FORM MAX. dia. 250mm) # LIDDING MATERIAL: MAX. WIDTH: 40mm (HSL COATED HARD ALU / GLASSINE FOIL, 0.02 TO 0.04 THICK; IN REEL FORM MAX. dia. 220mm) # MAX. PACK SIZE: 110mm x 130mm (1 UP), 110mm x 62mm (2 UP) # MIN. PACK SIZE: 40mm x 45mm # MAX. FORMING DEPTH: 10mm (EXTENDABLE TO 20mm) # MAX. OUTPUT* ie PACKS / MIN: 30 (1 UP) and 60 (2 UP) # MAX. STROKES / MIN: 30

Automatic Flat Plate Blister Packing Machine (Ideal for Commercial High Output batches): ALBLIS is a versatile ‘Flat Plate’ intermittent motion automatic blister packing machine that can produce Alu-Alu blister packs by cold forming method as well as PVC-Alu blister packs by thermoforming method. This machine is utilized for packing of smaller and regular shaped solid articles such as pharmaceutical Tablets, Capsules, Dragees etc. in Alu-Alu or PVC-Alu blister packs. This Machine can also be used for packing of Ampoules, Vials, Tubes in PVC-Alu blister packs. The Blister Forming, Sealing, Indexing and Punching operations are of intermittent reciprocating motion. Various types and styles of product feeding devices are offered to suit different applications. The standard configuration of the machine is for producing Alu-Alu blister suitable for Pharmaceutical Tablets, Capsules, Dragees etc. The standard configuration may be opted out or can be combined with other configurations. Some of the Important Features include: # Quick Change Over # Cost Efficient # Suitable for Alu-Alu, PVC-Alu and PVC-Paper Blister Packs # Can pack Tablets, Capsules, Dragees and also vials, Ampules, Tubes, Creams etc # Simple Operation # Cost Efficient # Easy Maintainence Technical Specifications: # BASE MATERIAL: MAX WIDTH: 260mm (COLD FORM LAMINATED ALU FOIL / PVC / PVC-PVDC, 0.2 TO .3 THICK; IN REEL FORM MAX. dia. 250mm) # LIDDING MATERIAL: MAX. WIDTH: 260mm (HSL COATED HARD ALU / GLASSINE FOIL, 0.02 TO 0.04 THICK; IN REEL FORM MAX. dia. 220mm) # MAX. PACK SIZE: 250mm x 140mm # MAX. FORMING DEPTH: 14mm # MAX. OUTPUT* ie PACKS / MIN: 70 (Alu-Alu, 2 Tracks), 200 (Alu-PVC, 4 Tracks) # MAX. STROKES / MIN: 35 (Alu-Alu), 50 (Alu-PVC)

ALBLIS-350 is a versatile ‘Flat Plate’ intermittent motion automatic blister packing machine that can produce Alu-Alu blister packs by cold forming method as well as PVC-Alu blister packs by thermoforming method. This machine is utilized for packing of smaller and regular shaped solid articles such as pharmaceutical Tablets, Capsules, Dragees etc. in Alu-Alu or PVC-Alu blister packs. This Machine can also be used for packing of Ampoules, Vials, Tubes in PVC-Alu blister packs. The Blister Forming, Sealing, Indexing and Punching operations are of intermittent reciprocating motion. Various types and styles of product feeding devices are offered to suit different applications. The output capacity of the machine depends on the product characteristics and thus on the type of feeding device. Normally for cold forming operation to produce Alu-Alu blisters this machine would operate at 25-35 cycles per minute and for thermoforming operation to produce PVC-Alu blisters it would operate at 30-50 cycles per minute. Some of the Important Features include: # Large Format Area for maximising your output # Heavy construction of machine ensures consistent performance of the machine for a long life # Simple to Operate, Simple to Maintain ensures minimum downtime of machine # Affordable Change Parts # Space efficient machine – maximum output per square feet of your clean room # Machine can be specced with different types of feeding systems for different requirements # Can handle a wide range of packing materials with capability of thermoforming as well as cold forming Technical Specifications: # BASE MATERIAL: MAX WIDTH: 350mm (COLD FORM LAMINATED ALU FOIL / PVC / PVC-PVDC, 0.2 TO .3 THICK; IN REEL FORM MAX. dia. 250mm) # LIDDING MATERIAL: MAX. WIDTH: 350mm (HSL COATED HARD ALU / GLASSINE FOIL, 0.02 TO 0.04 THICK; IN REEL FORM MAX. dia. 220mm) # MIN. FORMING AERA: 340mm x 160mm # MAX. FORMING DEPTH: 14mm # MAX. OUTPUT* ie PACKS/MIN: Upto 400 (depending on Pack Size & Pack COnfigurations) # MAX. STROKES/MIN: 35 (Alu-Alu), 50 (Alu-PVC) # DIMENSIONS: 4400mm x 1200mm x 2100mm (H)

VIBRO SIFTER: This machine is used for various applications like Sieving, Grading and Sizing of dry Powders and Granules in Pharmaceutical, Chemical, Food, Dye and Cosmetic industries. Machine is designed to Screen dry products through any mesh size as per particle size Also available in double / triple / four decks for multiple grading sizes in the same batch in the same process. The structure of the machine has been designed in order to achieve multiple plane vibration by suitable assembly of the specially designed Vibratory motor having eccentric weight at the top and bottom ends of the motor shaft. The motor is mounted vertically at the centre of the screening assembly, on a circular base by means of springs which allow the Unit to vibrate freely. The springs absorb the vibrations and prevent them to be transmitted on the floor. SFT-300 12" SFT-500 20" SFT-750 30" SFT-900 36" SFT-1200 48" Screen Sizes (in mm): 0.5, 1, 2, 3, 4, 5, 6, 8, 10, 12 mm etc. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/vibro-sifter.php

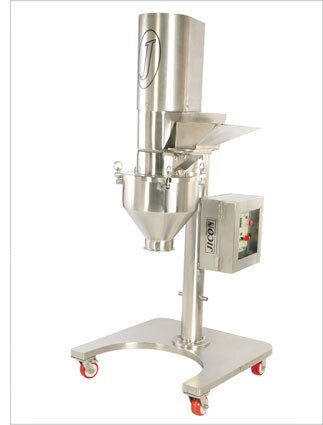

MULTIMILL: # A traditional vertical rotor mill, suitable for granulation, pulverising, shredding, chopping etc. from dry and wet materials. # Rotor, hopper, discharge bowl etc. can be easily removed for cleaning. # Rotor has 12 blades with blunt and knife edges for hammering and cutting action and is easy to remove. # Speed is variable and reversible # 300mm diameter Standard Screen in required mesh size. # Mounted on a freely standing mobile platform with castors for easy movement. # Different mounting structures available as per client’s requirement. # Output varying from 100kg to 800kg per hour depending on product and screen. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/multi-mill.php

Conventional coating pans are used to film coat or sugar coat tablets, pills, etc. Apart from the pharmaceutical industry, these machines are used in a variety of industries such as Pharmaceutical, Confectionery, Food and others. The product is to be filled inside the pan. During the rotation motion of the pan, coating material is sprayed by spraying system. At the same time hot air is supplied through inbuilt Hot air blower system which dries the coat rapidly. Thus a solid and smooth surface is formed over the product. # Suitable for sugar coating, film coating and coloring of tablets. # Mirror polished SS pans ensure uniform and excellent coating of tablets # Standard supply includes hot air blower # Thermostatically controlled heater provides regulated air upto 75ยบ C. # Specially designed stand allows changing of tilt angle of pan. # Variable speed drive. Standard Models: MODEL PAN SIZE APPROX.CAPACITY MAIN MOTOR BLOWER MOTOR CP-300 300 mm 8 kg. 0.37 kw. 0.18 kw CP-600 600 mm 30 kg. 0.75 kw. 0.18 kw CP-900 900 mm 50 kg. 0.75 kw. 0.37 kw CP-1050 1050 mm 70 kg 1.0 kw 0.37 kw CP-1200 1200 mm 100 kg. 2.2 kw. 0.75 kw CP-1500 1500 mm 150 kg. 3.7 kw. 1.0 kw Spray Coating Equipment: Spray coating machines for rapid and uniform coating of tablets, granules and pallets. Spray coating machine work as an attachment to the coating pan. These machines feature stainless steel 316 quality pressure vessel provided with SS jacket with electric heaters and thermostat control. # Suitable for film coating on tablets and granules. # Also used for sugar coating with some modifications. # Portable unit with various capacities. # All contact parts of SS 316 and non contact parts of SS 304. # Comprises of main vessel, SS stand for holding spray nozzles at different angles and various heights, pneumatic motor, air & solution control valve, pressure gauge, safely valve & spray nozzles. # Electric / steam jacket for heating. # Inbuilt homogenizer to prepare consistent solution. # Sequential ON-OFF timer for nozzles with Pneumatic cylinder. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/coating-pan.php

Auto coater is popularly used to coat tablets, pills, candies, granules, sweets with sugar film, an organic film, and aqueous coating in the Pharmaceutical and food industry. It is a high efficiency, energy-saving, safe and clean equipment for film & sugar coating of tablets, Pills, and candies with film – organic solvent and aqueous coating and film coating of tablets. The tablets to be coated are put into a continuous orbital motion the closed rotating Drum. The coating medium gets auto-sprayed during the process, while, the hot filtered air is supplied under negative pressure. The hot air penetrates through the core layers of the table and is discharged from the bottom of the layers. The coating medium sprayed on the surface of the tablet core will dry rapidly and evenly, forming a stable and smooth surface film on the tablet. About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries. https://jicon.com/ointment-manufacturing-plant-manufacturer-india.php

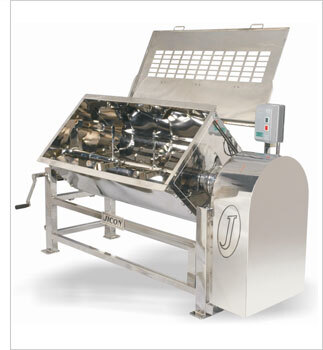

Designed for efficient and homogeneous mixing of dry and wet powders. Newly designed stuffing box prevents contamination. Sliding type covers with protective grill and safety devices are provided. Trough tilts forward for discharge of materials either manually or by motorised arrangement. # Mounted on strong structural frame for sturdy operation. # Limit switch is provided to stop running blades as soon as the cover is lifted. # Full Stainless Steel construction to comply with cGMP norms. # Loading / unloading platform can be fabricated as per client’s requirements. MADE IN TWO TYPES OF AGITATORS: PADDLE TYPE & RIBBON TYPE. # PADDEL TYPE SUITABLE FOR WET, TOUGH DOUGH MIXING, AS WELL AS DRY POWDER MIXING. # RIBBON TYPE SUITABLE FOR DRY FREELY FLOWING POWDERS. MODEL APP WORKING CAPACITY OVER FLOW CAPACITY MOTOR HP MM 50 50 Kg 125 litres 3 MM 100 100 Kg 240 litres 5 MM 200 200 Kg 480 litres 7.5 MM 250 250 Kg 550 litres 10 MM 350 350 Kg 750 litres 12.5 MM 500 500 Kg 1150 litres 15 About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries.

Jicon manufactures complete granulation line equipments including the Blenders viz. Double Cone Blenders, Octagonal Blenders and V Blenders. Size and technical specifications can vary based on the URS and Specs Sheet ************************************************************************* Double Cone Blender: The Double Cone Blender is an efficient and versatile machine for mixing dry powder and granules homogeneously. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc. The machine can be broadly divided in three parts viz.; main mixing vessel, stand or support structure and drive. The vessel is mounted on the stand on two pillow block ball bearings on each side. Drive, consisting of motor, gearbox etc. is also mounted on the stand. Powders or granules that are to be mixed are loaded in the vessel. Vessel rotates around its central shaft, driven by the drive system. As the vessel rotates, powders start flowing due to gravitational force. Because of the conical shape of vessel, mass of flowing powders contract and expand continuously, achieving desired mixing or blending. Baffles attached to the central shaft obstruct the flow of powders generating cross flows that assist in quicker blending. https://jicon.com/dry-powder-blenders.php ************************************************************************* Octagonal Blender: The OCTAGONAL BLENDER is an efficient and versatile blending machine for mixing and lubrication process of dry granules homogeneously. Octagonal Blender is suitable mainly for Crystalline & Granular material. The Octagonal Blender gives best results for granules due to very slow speed and octagon shape of container. It can be used for Pharmaceutical, Food, Chemical and Cosmetic products etc. When the product container vessel of Octagonal Blender starts rotating, the granules start flowing due to gravitational force. Because of the octagonal shape of the product container, the granules generates cross flows as well as constantly shrinking and expanding volumes. This ensures uniform mixing hence can be run at lower RPM. https://jicon.com/dry-powder-blenders.php ************************************************************************* V Blender: The machine is primarily suitable for mixing or lubricating of dry, freely flowing powders or granules. The machine has been designed for use in a pharmaceutical formulation manufacturing unit, in compliance with the latest GMP rules. The machine can be broadly divided in three parts viz.; main mixing vessel, stand or support structure and drive. The vessel is mounted on the stand on two pillow block ball bearings on each side. Drive, consisting of motor, gearbox etc. is also mounted on the stand. Powders or granules that are to be mixed are loaded in the vessel. Vessel rotates around its central shaft, driven by the drive system. As the vessel rotates, powders start flowing due to gravitational force. Due to the "V" shape of container, the materials get sufficient continuous movement and hence requirement of RPM is medium that results in good quality blending / lubrication of granules without size reduction. https://jicon.com/dry-powder-blenders.php ************************************************************************* About Jicon Technologies: Jicon Technologies is 38 yrs old leading brand, especially known for Manufacturing and Exporting of Pharmaceutical Machines in India, Nepal, Bangladesh, Sri Lanka, Philippines, Afghanistan, Iran, Iraq, Syria, Jordan, Turkey, Israel, United Arab Emirates, Saudi Arabia, Yemen, Egypt, Algeria, Sudan, Ethiopia, Kenya, Uganda, Tanzania, South Africa, Nigeria, Ghana, Russia, United States of America, El Salvador. Overall we have a happy and satisfied clientele across 50+ countries.
