Finding a replacement Ensule part in Dubai starts with identifying the exact machine configuration, not searching by capsule size alone. You will be able to compare local stock, imported-to-order supply and qualified fabrication routes, then request the documents and acceptance checks needed before approving a part for production.
Key takeaways
- Confirm the Ensule model, part number, capsule size and mounting arrangement.
- Separate format-specific tooling from standard maintenance items before requesting prices.
- Compare Dubai stock, imported parts and local fabrication against downtime and fit risks.
- Request drawings, material details, lead time and acceptance checks before payment.
Identify the Ensule machine and installed part before contacting a supplier
A Dubai buyer needs more than “size 0” or “size 00” to obtain an accurate Ensule parts quotation. Those designations identify capsule format, not a complete change part: tooling geometry, mounting, drive arrangement and sensor position can differ between Ensule filler models.
Send the machine nameplate data and the installed component’s evidence before asking for a price.
- Record the Ensule machine model and machine serial number exactly as shown on the nameplate.
- State the capsule-size range currently used, such as 0–00, and identify the station location: dosing, transfer, closing, ejection or another position.
- Measure the installed part, including outside diameter, bore, working length, mounting dimensions and hole pattern where applicable.
- Attach a clear photograph showing the complete part, mounting position, markings and any damage. Add a dimensioned drawing if the photograph cannot show critical features.
- Ask the supplier to match the request to the nameplate and return the manufacturer part number, revision level, drawing reference or written compatibility confirmation.
Do not treat the phrase ensule capsule filling machine exporter as proof of original-manufacturer or authorised status. A generic quotation for “automatic capsule filler spare parts” is not enough.
Copy and send the model, serial number, capsule range, station, dimensions, photograph or drawing, required quantity and production deadline; then reject any offer that cannot identify the exact Ensule configuration.
Know which Ensule parts are format-specific and which are maintenance items
Do not order a “size 00 set” until you know which parts change with the capsule format. Dosing discs or dosator assemblies, tamping pins, powder funnels, capsule magazines, separation blocks, and closing and ejection components often form a matched set for orientation, rectification, dosing, transfer, closing, and ejection. They are not interchangeable punches.
| Category | Examples | Main risk |
|---|---|---|
| Format-specific change parts | Dosing discs, dosators, tamping pins, powder funnels, magazines, separation blocks, closing and ejection parts | Wrong outside diameter, bore, keyway, working length, mounting pattern, clearance, or timing can cause misfeeds, capsule damage, poor separation, or variable fill weight |
| Maintenance items | Vacuum filters, air fittings, proximity sensors, belts, bearings, seals | Leakage, restricted flow, sensor failure, belt slip, bearing wear, or loss of sealing can stop the machine without changing capsule size |
| Product-contact parts | Dosing discs, dosators, funnels, tamping pins | Incorrect flatness, concentricity, clearance, or surface finish can alter powder retention and fill-weight repeatability |
Check every replacement against the installed drawing, not only the capsule designation. A dimensionally correct O-ring or hose can still fail if its elastomer is incompatible with the product, cleaning agent, oil, or temperature. A substitute vacuum filter can also alter airflow and leave capsule separation or transfer unreliable.
For automatic capsule filler parts in Dubai, ask for material, surface finish, dimensional inspection, and a clean, burr-free condition. Trial dosing at the intended speed, then check capsule closing, rejection causes, and fill-weight data; visual fit is not acceptance.
Choose between Dubai stock, imported supply and local fabrication
Three sourcing routes determine whether a failed Ensule machine returns to production today or waits for a shipment.
| Route | Physical source | Stoppage implications |
|---|---|---|
| Model-specific OEM or authorised supply | UAE stock, or imported against your order | Best match and installation support; confirm freight, customs paperwork, warranty and return approval before ordering |
| Dubai industrial spare-parts intermediary | Stock in Dubai, imported to order or re-exported through Dubai | Fast local response when stocked; re-export adds freight, customs handling and slower returns |
| Qualified machine shop | Fabricated in Dubai from an approved drawing | Can shorten lead time for brackets, guards and other non-critical hardware; no substitute for proprietary dosing, separation, safety or control parts |
Treat the phrase “capsule filling for machine exporter in dubai” as a search description, not proof of original or authorised supply. Ask the seller to identify the item against the Ensule nameplate, parts list or drawing before accepting a generic quotation.
Do not fabricate a dosator, dosing disc, separation block, safety component or control part without dimensional inspection and functional testing. A bracket made to a drawing can restore alignment quickly; an incorrect dosing or control component can damage capsules, create rejects or leave the machine unsafe.
Before issuing the purchase order, ask:
- Is the item held in UAE stock, imported against this order or re-exported through Dubai?
- Who pays customs duties, clearance charges and return freight?
- What is the estimated lead time by courier, air freight or road delivery?
- Does the price include installation, commissioning, warranty and urgent failure support?
Demand the right documents and acceptance checks before payment
Do not pay against a unit price alone. A complete quotation must state the manufacturer part number, revision level or drawing reference, compatible Ensule machine model, material specification, surface finish, certificate of conformity, warranty, and traceability or batch information where applicable.
It must also separate freight, customs documents and installation support so hidden costs do not appear after delivery.
For a metal product-contact part, request an EN 10204 3.1 material certificate when your process or quality system requires it. Ask for an elastomer or plastic declaration when the formulation, cleaning chemistry or destination-market controls require evidence of compatibility.
Use this acceptance sequence before releasing final payment:
- Measure critical dimensions against the approved drawing, including mounting features, bore, working length and clearances.
- Confirm the supplied material and surface finish match the quotation and certificate.
- Inspect the packaging for cleanliness, then check every product-contact surface for burrs, scratches, corrosion or residue.
- Install the part and run a machine trial at the intended operating speed.
- For dosing parts, record capsule closing performance, rejection causes and fill-weight data; visual fit alone is not acceptance.
A part that fits but changes fill weight, damages capsules or increases rejects has failed the trial. Record the inspection results, certificate numbers and any deviations before accepting delivery.
Use a Dubai supplier contact to turn the request into a verified parts order
Send one complete evidence pack in your first enquiry so the Dubai supplier can identify the part before quoting it.
1. Attach the nameplate photograph, machine serial number, model, capsule format, station description, failed-part photographs, key dimensions, required quantity and production deadline. Include the installed part’s drawing if available.
2. Ask the supplier to match the item to an Ensule parts list or drawing and provide the manufacturer part number, revision level or written compatibility confirmation. Ask whether the part is original, compatible, refurbished or fabricated.
3. Confirm whether the item is held in UAE stock, imported to order or re-exported through Dubai. A seller described as an ensule capsule filling machine exporter is not automatically an authorised or genuine Ensule source. Likewise, a listing for automatic capsule filler parts in dubai proves only that someone offers parts.
4. Require the quotation to state lead time, delivery method, customs responsibility, warranty and available installation, commissioning or machine-trial support. Jicon Technologies Pvt Ltd is one Dubai-based supplier you can contact for this verification exercise, not proof that every requested part is available or genuine.
Treat a capsule filling for machine exporter in dubai as one route to investigate, then compare the evidence:
- Machine model and serial match confirmed
- Part number, revision or drawing supplied
- Original, compatible, refurbished or fabricated status stated
- UAE stock or import route disclosed
- Lead time, freight and customs responsibility itemised
- Warranty and trial support defined
- Material, dimensions and acceptance checks documented
- Quote confirmed usable on your specific machine
Choose the quote with the strongest technical record, not the lowest unit price. A cheap part that needs machining or fails during a trial extends the stoppage.
Related products

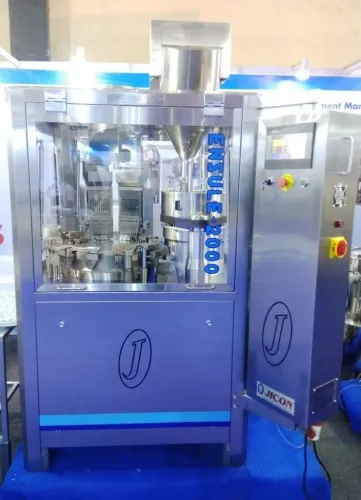

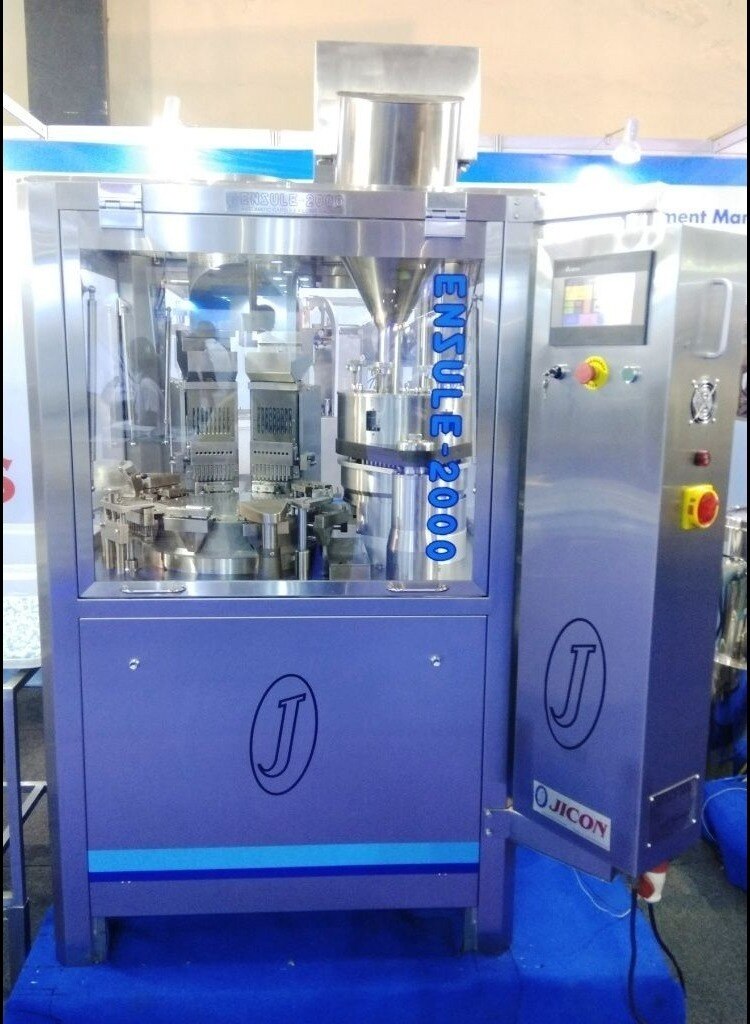

 | Capsule Filling Machines ENSULE: Automatic Capsule Filling Machines ENSULE series of machines are Fully Automatic Capsule Filling machines used to fill powder in the form of slug in hard gelatin capsules. View product → |
 | Capsule Filling Machines Automatic Capsule Filling Machine ENSULE 2000 ENSULE 1500 ENSULE 750 ENSULE 400 ENSULE 200 Our ENSULE series of machines are Fully Automatic Capsule Filling machines used to fill powders (in the form of slugs, pellets or mini tablets) in... |
Frequently asked questions
What information should you provide when ordering Ensule capsule filling machine parts?
Provide the machine model, installed part or assembly name, capsule size, part number, tooling geometry, mounting arrangement, drive details and sensor position. Photos and the existing part’s measurements help the supplier verify the match.
Which Ensule parts are format-specific?
Change parts linked to capsule size and tooling geometry are format-specific. Confirm the fit for the machine model, mounting arrangement, drive system and sensor position instead of ordering from a size 0 or size 00 designation alone.
Should you buy Ensule parts from Dubai stock, import them or have them fabricated locally?
Choose Dubai stock when downtime is urgent and the supplier can verify compatibility. Use imported supply for confirmed original or specialist parts when lead time is acceptable. Consider local fabrication only after approving drawings, materials, tolerances and inspection checks.
What documents and checks should you request before paying for parts?
Request a quotation identifying the exact machine and part, approved drawings or dimensions, material details, delivery lead time, warranty terms and any inspection records. Check dimensions, mounting, movement, sensor clearance and operation before accepting the part.
